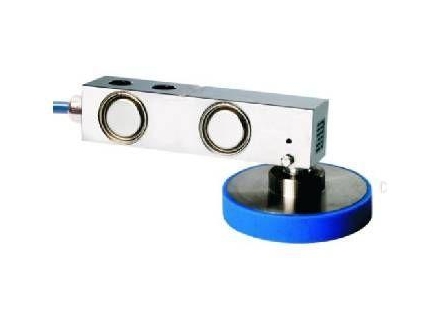

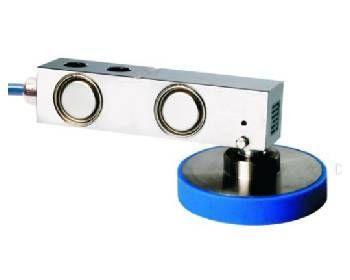

The T85-T is a high-accuracy load cell for industrial weighing applications, but is primarily suitable for platform scales due to its low height and blind loading hole that optimally introduces the load into the shear beam. It has an OIML C3 approval (required for legal-for-trade platforms). It can withstand harsh operating environments thanks to its fully welded and hermetically sealed design (IP68/IP69K).

To minimize corner correction (installation and set-up time), the T85-T load cell has an optimized corner pre-adjustment calibrated in mV/V/Ohm with output current matching at ±0.05%.

The T85-T is ATEX approved for use in hazardous areas with a risk of explosion. It is ATEX certified for gas zones 20, 21 and 22, which does not require the use of safety barriers.

• Fully welded and hermetically sealed stainless steel construction with IP68/IP69K protection class
• Compliant with OIML R60 regulations up to 3000 sections (C3) according to EN 45501
• Nominal capacities: 300kg, 500kg, 750kg, 1000kg, 1500kg and 2000kg
• Calibrated in mV/V/Ohm
• Wide operating temperature range: -30°C to +70°C
• ATEX approval - For all Gas and Dust zones
