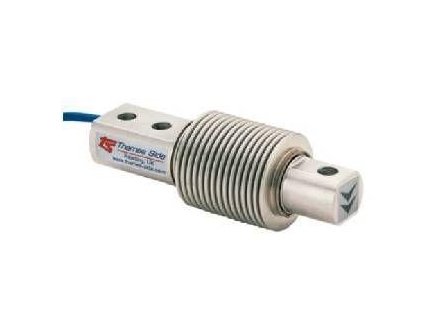

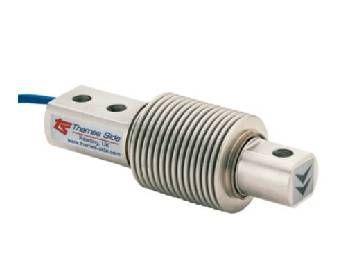

The T66 high precision stainless steel bellows load cell is a premium load cell and is widely used in industrial weighing applications. It offers extremely high accuracy with OIML approval and can withstand harsh production environments.

It has OIML approval for 3000 compartments (C3) or 6000 compartments (C6) and ATEX approval for use in hazardous areas where there is a risk of explosion. Certification for dust zones 20, 21 and 22 does not require the use of safety barriers. The load cell is supplied in a 6-wire configuration (with sensor wires) as standard. An optional 4-wire version is available on request (OIML C3 only).

The T66 load cells are ATEX certified for all Gas and Dust zones. ATEX certification for dust zones 20, 21 and 22 does not require safety barriers and provides significant cost savings. A special Parylene coating can be specified as an option for applications in aggressive environments where stress corrosion or acid attack are a concern. High temperature variants are also available for continuous operation in environments up to 150˚C.

Fully welded and hermetically sealed stainless steel construction with IP68/IP69K protection class
Compliant with OIML R60 regulations up to 3000 divisions (C3) or 6000 divisions (C6) for scales according to EN 45501
Nominal capacities: 5kg, 10kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg
Nominal capacities (C6 version): 50kg, 75kg, 100kg, 150kg, 200kg, 250kg
6-wire (sensor wire) configuration as standard
Wide operating temperature range: -30°C to +70°C
Options: Parylene coating for the load cell when used in extremely harsh environments, as well as high temperature resistant options available

• Platform scales
• Big bag (FIBC) filling
• Belt scales
• Tank weighing
• Filling and packaging machines
• Mobile conveyors
