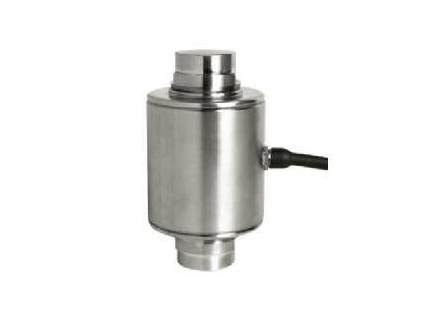

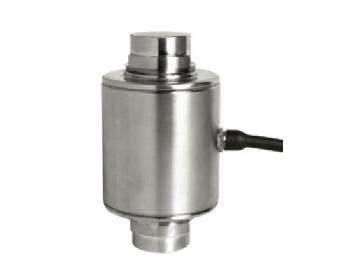

The T35 is an analog stainless steel load cell with a self-centering rocker column design for use in legal commercial applications.

It is particularly suitable for use on truck scales/weighbridges thanks to its OIML C4 approval, robust design, proven anti-rotation mechanism and rodent-resistant (anti-mouse) polyurethane cable.

It is very easy to install with its fully welded and hermetically sealed construction protected to IP68/IP69K and integrated light guard as standard.

For use in aggressive environments where stress corrosion or acid attack is a potential problem, a special Parylene coating can be specified as an option. An optional variant is available for use in high temperature environments up to +150 °C.

• Capacities 30,000kg to 40,000kg
• Stainless steel construction
• Calibrated in mV/V/Ohm
• Wide operating temperature range: -50°C to +70°C
• Commercial regulatory approval to OIML R60 C4 (4000 sections)
• Y rating of 15,000 sections
• IP68/IP69K protected, fully welded and hermetically sealed stainless steel load cell
• Simple installation with self-centering design
• Internal surge arresters (SPDs) for lightning protection as standard
