T34D

Brand: Thames Side

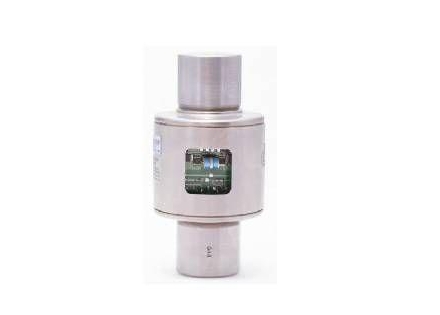

The T34D is a digital stainless steel load cell with a self-centering rocker column design. It has a state-of-the-art internal microprocessor that optimizes accuracy, resolution and corner correction adjustment.

It is particularly suitable for use in truck scales / weighbridges thanks to its OIML C4 approval (available on special request), robust design and rodent-resistant (rat-proof) polyurethane cable.

With its IP68/IP69K protected, fully welded and hermetically sealed construction and standard integrated light guard, it is easy to install and has become the reference load cell solution for truck scales. More than 300,000 units of this design have been successfully installed worldwide.

The T34D digital load cell uses the RS485 full-duplex digital interface to simplify the commissioning of a truck scale or weighbridge, providing simpler and faster corner adjustment and calibration compared to analogue load cells.

For use in aggressive environments where stress corrosion or acid attack is a potential problem, a special Parylene coating is an option. An optional variant is available for use in high temperature environments, up to +150 °C.

  • Capacity range from 15,000 kg to 60,000 kg
  • Stainless steel construction
  • Integrated microprocessor
  • Digital RS485 interface for simpler and faster front corner adjustment, system calibration, fault finding and maintenance
  • Commercial regulatory approval according to OIML R60 C4 (4000 sections) - only available on special request
  • IP68/IP69K protected, fully welded and hermetically sealed stainless steel load cell
  • Simple installation with self-centering design
  • Internal surge arresters (GDTs) for lightning protection as standard
  • Operating temperature range: -30 °C to +70 °C
  • Analogue version
