T34

Brand: Thames Side

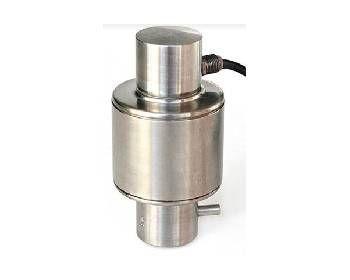

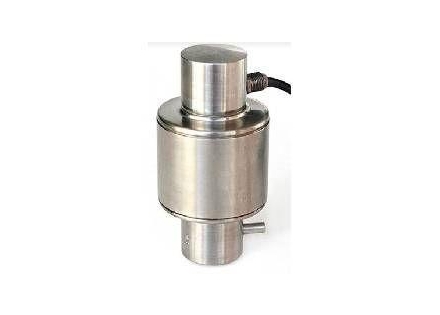

The T34 is a stainless steel load cell with a self-centering rocker column design for use in legal commercial applications.

Thanks to its OIML C4 approval, robust design, proven resistance to harsh environmental conditions and rodent-resistant (rat-proof) polyurethane cable, it is particularly suitable for use in truck scales/weighbridges.

Thanks to its IP68 and IP69K protected, fully welded and hermetically sealed construction and standard integrated structure, it is easy to install and has become the reference load cell solution for truck scales.

More than 300,000 units of this design have been successfully installed worldwide.

To simplify the commissioning of a truck scale or weighbridge, the T34 load cell has an optimized pre-corner adjustment as it is calibrated in mV/V/Ohm with output current matching. This reduces the time required to calibrate a truck scale or weighbridge.

For applications in hazardous areas, the T34 has ATEX approval for all zones. Its special certification allows use in dust zones 20, 21 or 22 without the need for safety barriers – saving our customers a great deal of money.

For use in aggressive environments where stress corrosion or acid attack is a potential problem, a special Parylene coating can be specified as an option. An optional variant is available for use in high temperature environments, up to +150 °C.

  • Stainless steel construction
  • Calibrated in mV/V/Ohm
  • Wide operating temperature range: -50 °C to +80 °C
  • Legal trade approval according to OIML R60 C4 (4000 parts) up to 60,000 kg
  • Fully welded and hermetically sealed stainless construction with IP68 and IP69K protection
  • Simple installation with self-centering design
  • Internal GDTs for lightning protection as standard
  • ATEX approved version for all zones (no safety barriers required in dust zones 20, 21 or 22)
  • Optional high temperature version for use up to +150 °C
  • Digital version, T34D, also available
