The T20 is a cost-effective, reliable and simple solution, especially for weighing silos, tanks, hoppers and tanks. It is designed to operate in extreme temperatures with an operating range of -50 °C to +70 °C.

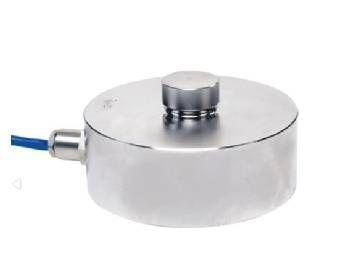

The fully welded and hermetically sealed stainless steel load cell, protected to IP68/IP69K, is available with a mounting accessory in zinc-plated steel or stainless steel. It is the ideal combination for applications in harsh environments that require regular wash-down cleaning.

Alternatively, ATEX approval is available for use in hazardous areas where there is a risk of explosion. ATEX certification for gas zones 20, 21 and 22 does not require the use of safety barriers.

The load cells can be placed under the feet of the silo, vat or hopper, but where cost is critical, a dummy/load cell (DUMMY) can be placed under one or more feet.

This is a cost-effective solution designed with the needs of silo/tank manufacturers and weighing system integrators in mind.

• Fully welded and hermetically sealed stainless steel construction with IP68/IP69K protection
• 1000 division accuracy for cost efficiency
• Capacity range from 1,000kg to 30,000kg, two sizes of load cell and mounting accessories
• Wide operating temperature range: -50°C to +70°C
• Parylene coating option for load cell when used in extremely harsh environments
• Optional ATEX approval
• Optional high temperature version for use up to +150°C
