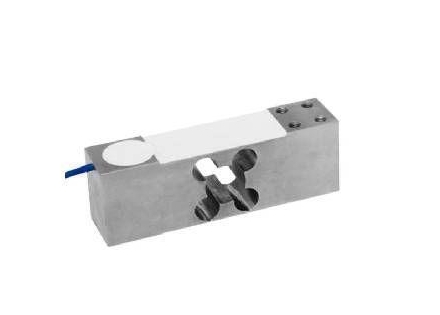

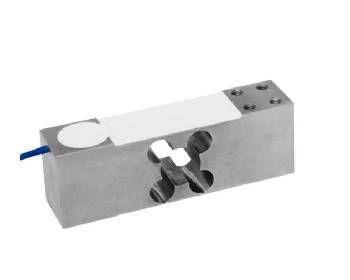

The T12A single point load cell is manufactured from high quality nickel-plated alloy steel and its design provides high accuracy weight measurement even for off-centre loads when the environment does not require stainless steel. The silicone-sealed construction, protected to IP66, provides a cost-effective solution with OIML C4 (4000 sections) approval. The T12A is supplied with a screened polyurethane cable as standard, which provides a higher level of resistance than a PVC cable.

• Capacity range: 50-400kg
• Nickel-plated alloy steel load cell, IP66 protected
• Compliant with OIML R60 regulations for scales up to 4000 sections (C4) according to EN 45501
• 600mm x 600mm or 800mm x 800mm, max. platform size (load cell is positioned centrally under the platform)
• Polyurethane cable
