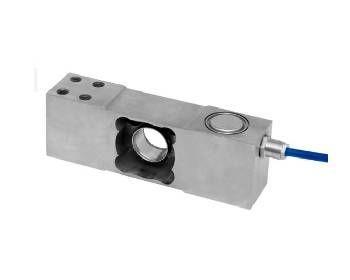

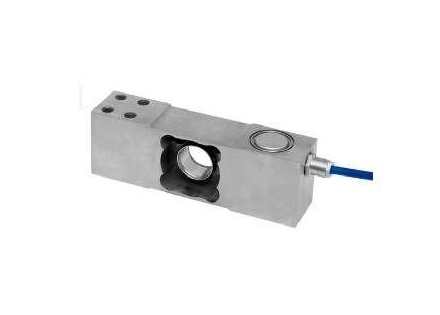

The T12 single point load cell is manufactured from stainless steel and its design provides high accuracy weight measurement even with off-center loads and harsh environments. With protection class IP68/IP69K, its hermetically sealed and fully welded construction is suitable for use in applications involving regular washing at high temperatures and pressures, such as the food and pharmaceutical industries. With OIML C3 approval (3000 sections) and a screened 6-wire polyurethane cable, this load cell offers high accuracy. As an option, ATEX approval is available for use in hazardous areas where there is a risk of explosion. ATEX certification for gas zones 20, 21 and 22 does not require the use of safety barriers.

• Capacity range: 15-400kg
• Stainless steel, fully welded and hermetically sealed, IP68/IP69K protection
• Compliant with OIML R60 regulations up to 3000 divisions (C3) for scales according to EN 45501
• Accuracy tolerance of ±0.1% mV/V as standard
• 600mm x 600mm or 800mm x 800mm, max. platform size (load cell centrally positioned under the platform)
• Polyurethane cable
• Option: ATEX approval
• Optional high temperature version for use up to +150 °C
