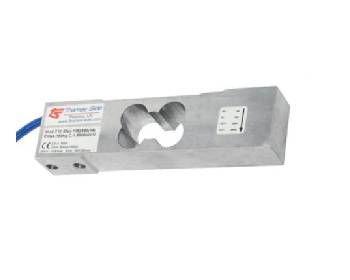

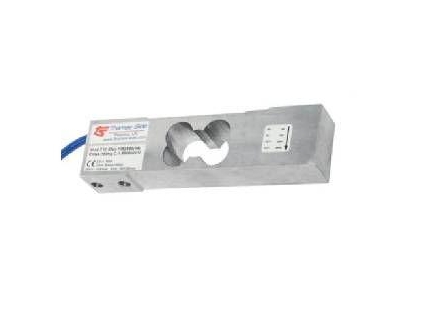

The T11 single point load cell is manufactured from high quality nickel plated alloy steel and its design provides high accuracy weight measurement even with off-center loads.

Suitable for platforms up to 500mm x 500mm (with the load cell mounted centrally under the platform) and carries OIML C3 approval (3000 sections) from 15kg to 75kg. Encased and silicone sealed to provide IP66 protection, it also has a polyurethane cable as standard. Polyurethane has a higher resistance to UV radiation, temperature changes and impact/cuts than PVC cable.

• Capacity range: 15, 20, 30, 50, 75,100,150kg
• High quality nickel plated alloy steel, corrosion resistant
• OIML C3 approval (15kg - 75kg capacities)
• Fully encapsulated and sealed to IP66
• Platform size 500 x 500 mm max.
• Polyurethane cable
