106MS

Brand: Anyload

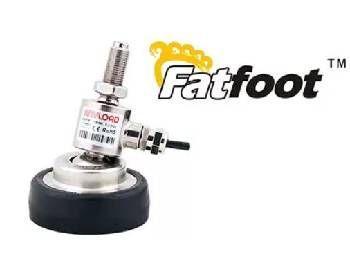

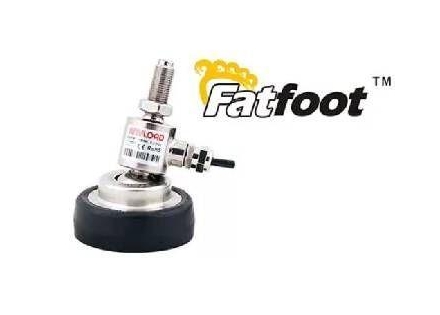

The Fatfoot™ load cell provides an elegant and time-saving weighing solution for a wide range of applications. It integrates a load cell foot with a patented, custom-designed load cell. Designed to be center-pivot, self-controlling, and feature a 50% degree of safety lift protection, the Fatfoot™ leads the industry in load cell innovation. Six meters of cable are secured to the load cell for easy integration and are an efficient, cost-effective, and user-friendly solution that requires no professional training. Common applications include hopper weighing, floor scales, tank weighing, and more.

  • Material: Stainless Steel
  • Capacities: 500kg, 1t, 2t, 5t, 10t, 1Klb, 2.5Klb, 5Klb, 10Klb, 20Klb
  • Full Scale Output: 2.0mV/V ±0.25%
  • Safe Overload: 150%
  • Overload: 300%
  • IP Rating: IP67
  • CE and RoHS certified
  • Multiple patents, innovative design
  • User friendly, no professional training required
  • Compact structure, saves more space than traditional weighing modules
  • Cable (6m) is fixed to the load cell
